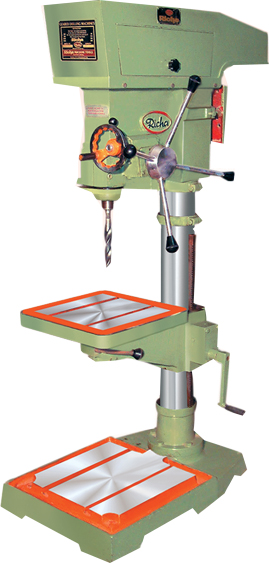

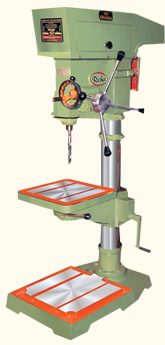

RMT 32 / 40 m / m x 12” - Centre

RMT 32 & 40
    Model Model Unit

1 Drilling Capacity (In Steel) 32 40 mm

2 Column Diameter 114 114 mm

3 Center of Spindle & Column 300 300 mm

4 Max. Distance (Nose to Base) 625 625 mm

5 Max. Distance (Nose to Table) 1045 1045 mm

6 Taper in Spindle 3 4 mt

7 Spindle Travel 170 200 mm

8 Quill-Dia Meter ¢72 ¢72 mm

9 Nos. Of Speed 8 8 mm

10 Range of Speed 75 to 2070 75 to 2070 mm

11 Table Size 390 x 390 390 x 390 mm

12 Base Size (Machined area) 390 x 390 390 x 390 mm

13 Overall Base Size 740 x 500
x120
740 x 500
x120
mm

14 V-Belt Section B-58 B-58 inch

15 Electric Motor 1440Rpm 1.5 1.5 hp

16 Wooden Case Size(L x W x H ) 1050x600
x1900
1050x600
x1900
mm

17 Range Of Power Feed Fine Feed Fine Feed Manual

18 Weight (Approx) Without Electrical 330 330 kg


The Designs are subject to Modification and improvement without notice.
