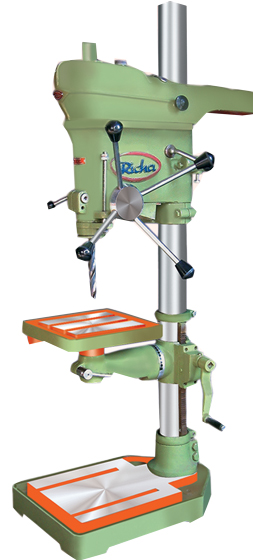

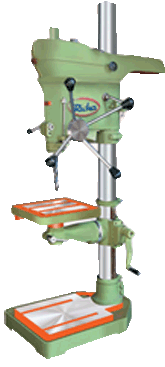

RMT 20. m x m
Rmt 20
    MODEL UNIT

1 Drilling Capacity (In Steel) 20 mm

2 Throat (Distance Between Centre of
Spindle & Column Face)
205 mm

3 Max. Distance (Nose to Base) 925 mm

4 Max. Distance (Nose to Table) 650 (4 'Ft. Pillar) mm

5 Spindle Travel 125 mm

6 Taper in Spindle M.T. - 02

7 Size of square Table 270 mm

8 Working Surface of Base 260x260 mm

9 Size of Base 570x350x75 mm

10 Nos. of Speed 8 nos

11 Speed Range (MotorRpm-1440) 86 to 3360 rpm

12 Motor Power .55kw/.75Hp kw/hp

13 column length 1220 mm

14 Column Diameter 74 mm

15 V-Belt A - 44" inch

16 Overall/Dimension H x w x T 1500x630x290 mm

17 Weight(Approx) Without Electrical 110 kg

18 Size of Round Table (Optional Std) na mm

19 Size of Round Base (Optional Std) na mm


The Designs are subject to Modification and improvement without notice.
