Our Products

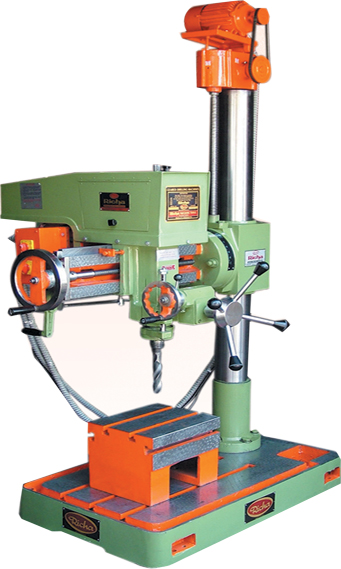

RMT Radial 25 m / m x 600 - Centre   ( Rack – Pinion & Motorised )

RMT REDIAL 25 x 600

model Unit


1 Drilling Capacity (In steel) 25 mm

2 Column Diameter 120 mm

3 Center of Spindle & Column 600 mm

4 Max. Distance (Nose to Base) 1100 mm

5 Max. Distance (Nose to Table) 850 mm

6 Taper in Spindle MT - 03 mt

7 Spindle Travel 170 mm

8 Quill-Dia Meter ¢63.5 mm

9 Nos. of Speed 08 - Speed nos

10 Range of Speed 75 to 270 rpm

11 Table size 310 x 270 x 250 mm

12 Base Size (Machined area) 530 x 450 mm

13 Overall Base Size 850 x 550 x 110 mm

14 V-Belt Section B - 40 inch

15 Electric Motor 960RPM 1.0 H/P 960 RPM hp

16 Wooden Case Size(L x w x H ) 1300 x 10000 x 1600 mm

17 Range of Power feed Fine Feed Manual

18 Weight (Approx) 450 & 550 kg


The Designs are subject to Modification and improvement without notice
