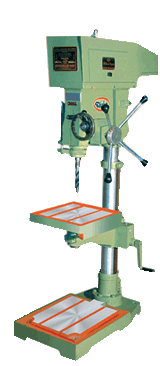

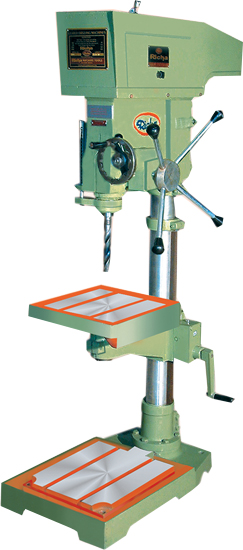

RMT 25. m / m x 8” - Centre
RMT 25
    Model

1 Drilling Capacity (In Steel) 25

2 Column Diameter 74

3 Center of Spindle & Column Face 205

4 Max. Distance (Nose to Base) 925

5 Max. Distance (Nose to Table) 650. m / m

6 Taper in Spindle M.T. - 03

7 Spindle Travel 170

8 Quill-Dia Meter ¢63.5

9 Nos. of Speed 08

10 Range of speed 86 to 3360

11 Table Size 270x270

12 Base Size (Machined area) 260x 260

13 Overall Base Size 570x350x75

14 V-Belt Section B-51

15 Electric motor 1. H / P - 1440 rpm

16 Wooden Case size (L x W x H) 1500x630x290

17 Weight (Approx) Without Electrical 140. kgs


The Designs are subject to Modification and improvement without notice
