Our Products

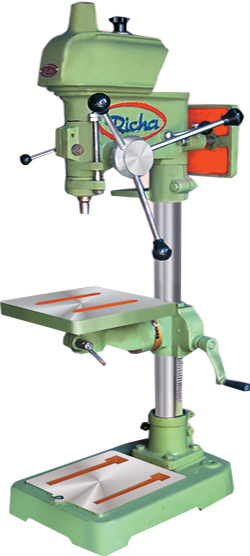

RMT 13. m x m
RMT 13
    MODEL UNIT

1 Drilling Capacity (in steel) 13 mm

2 Throat (distance Between Centre of
Spindle & Column FACe)
155 mm

3 Max. Distance (Nose to Base ) 550 mm

4 Max. Distance (Nose to Table) 300 mm

5 Spindle Travel 75 mm

6 Taper in Spindle Solid mt

7 Size of square Table 205x205 mm

8 Working Surface of Table 205x205 mm

9 Size of Base 360x265x65 mm

10 Working Surface of Base 210x145 mm

11 Nos. of Speed 4 8nos

12 Speed Range (Motor Rpm-1440) 500x2825 rpm

13 Motor Power .37 Kw/.5Hp1/2 kw/hp

14 Column Length 820 mm

15 Column Diameter 47 mm

16 V-Belt A34 inch

17 Overall/Dimension H x W x T 840x290x250 mm

18 Weight (Approx) Without Electrical 45 kg

19 Size of Round Table (Optional Std.) na mm

20 Size of Round Base (Optional Std.) na mm

The Designs are subject to Modification and improvement Without notice
